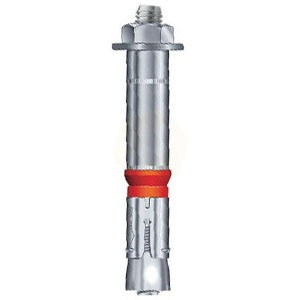

24 X 157mm Heavy Duty Anchor – Projecting Stud & Nut – Bright Zinc Plated
£7.31 - £8.12
Excluding VAT
SKU: 52021.024.157
- Drill hole diameter: 24mm, Thread size: M16
- Minimum hole depth: 130mm
- Embedment depth: 120mm, Minimum structure thickness: 200mm
- Clearance hole in fixture: 26mm
- Tightening torque: 160Nm
Available
- Heavy duty torque controlled expansion anchor – ETA Option 1 approval
- Through Fixing – the drilled hole is the same as the bolt diameter
- Rapid fixture in cracked and non-cracked concrete
- Can be used where resistance to fire or shock loading is a requirement
- Medium and heavy duty applications in concrete C20/25 to C50/60
- High-tensile steel parts bright zinc plated
- Plastic compression ring ensures the clamping of the fixture to the substrate
- Ideal for fixing heavy machinery, columns, baseplates, racking, brackets
