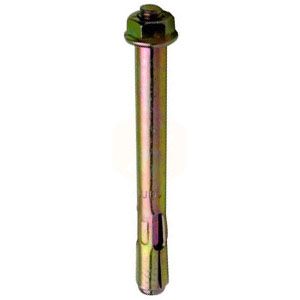

20mm/M16 x 150mm Hexagon Nut Sleeve Anchor Zinc Clear CR3
£1.92 - £2.13
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 52014.200.150
- Drill hole diameter: 20mm; Thread diameter: 16mm
- Maximum fixture thickness: 90mm
- Maximum hole depth: 70mm; Minimum structure thickness 100mm
- Embedment depth: 60mm
- Clearance hole in fixture: 22mm
- Tightening torque: 165Nm
Available
- All steel, general purpose through fixing anchor
- Through Fixing – the drilled hole is the same as the bolt diameter
- Ideal for bolting in place fixtures without the need for marking out
- Fixtures do not need to be removed or re-positioned to fix
- Suitable for internal, dry use only
- Optimal collapse feature ensures maximum clamping force
- Use in concrete, solid brick, dense blockwork and stone
