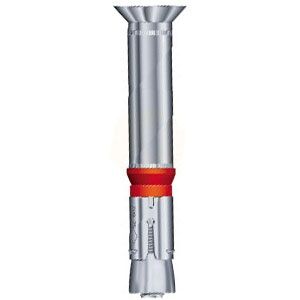

15 X 135mm Heavy Duty Anchor – Countersunk Head – Bright Zinc Plated
£4.45 - £4.94
Excluding VAT
SKU: 52022.015.135
- Drill hole diameter: 15mm, Thread size: M10
- Maximum fixture thickness: 50mm
- Minimum hole depth: 95mm
- Embedment depth: 85mm, Minimum structure thickness: 140mm
- Clearance hole in fixture: 17mm
- Tightening torque: 55Nm
Available
- Heavy duty torque controlled expansion anchor – ETA Option 1 approval
- Through Fixing – the drilled hole is the same as the bolt diameter
- Rapid fixture in cracked and non-cracked concrete
- Can be used where resistance to fire or shock loading is a requirement
- Medium and heavy duty applications in concrete C20/25 to C50/60
- High-tensile steel parts bright zinc plated
- Plastic compression ring ensures the clamping of the fixture to the substrate
- Countersunk version ideal where a flush finish is required
- Ideal for fixing heavy machinery, columns, baseplates, racking, brackets
