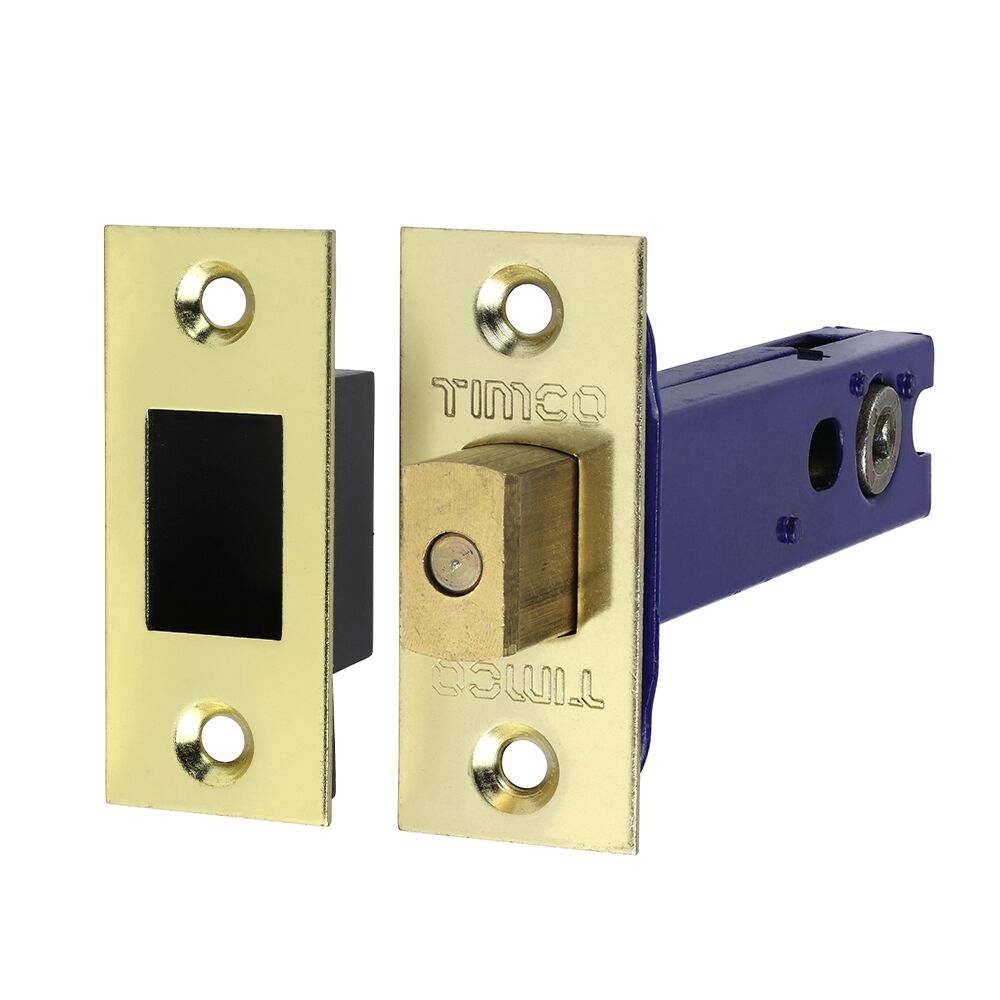

103.5mm Architectural Tubular Deadbolt – Electro Brass & Satin Nickel
£7.92 - £9.90
Excluding VAT
SKU: 675481P
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
• Fixings for electro brass & satin nickle furniture
• Use with sprung or unsprung furniture
• Dust box
• Complete with fixing screws
Available
Product Code: 675481P
Lock Case Width | 15 |
Lock Case Height | 22.5 |
Pack Qty | 1 |
Bolt Throw (mm) | 15 |
Keep Size H x W (mm) | 60 x 25 |
Lock Follower Backset (mm) | 82.5 |
Material | Steel |
Finish | Electro Brass, Satin Nickel |
Pack Weight (kg) | 0.21 |
Backset (mm) | 82.5 |
Lock Case Depth | 103.5 |
Screw Size (mm) | 4.0 x 25 |
Screw Size (imp.) | 8 x 1 |
Pack Quantity Unit | Each |
MOQ | 1 |
MOQ Increment | 1 |
Lock Case Size H x D (mm) | 22.5 x 103.5 |
Faceplate Size H x W (mm) | 60 x 25 |
Faceplate Type | Square |
Size (mm) | 103.5 / 82.5 |
Size (imp.) | 4 |
