A4 Stainless Steel Half Hexagon Reduced Head Open End Rivet Nut
A4 Stainless Steel Half Hexagon Reduced Head Open End Rivet Nut
The hole’s diameter should be 0.1mm bigger than the rivet nut’s body for the best results.
known additionally as reduced head rivet nuts
grip size: Minimum and maximum allowable material thicknesses for the nut. Stainless Steel A4 Marine Grade Finish.
Our comprehensive selection of Half Hex Reduced Head Open Rivet Nuts in Stainless Steel are ideal for several applications.
Reduced Head is readily fitted in thin materials and is made of stainless steel.
Due to the robust flush flange that remains after deformation of the rivet nuts, blind rivet nuts have the same characteristics as a tapper thread in complete material. When the material’s back and the object’s interior are inaccessible, it can be set from one side. The substance won’t be harmed.
will not cause the material to distort or get discoloured
Showing all 5 results

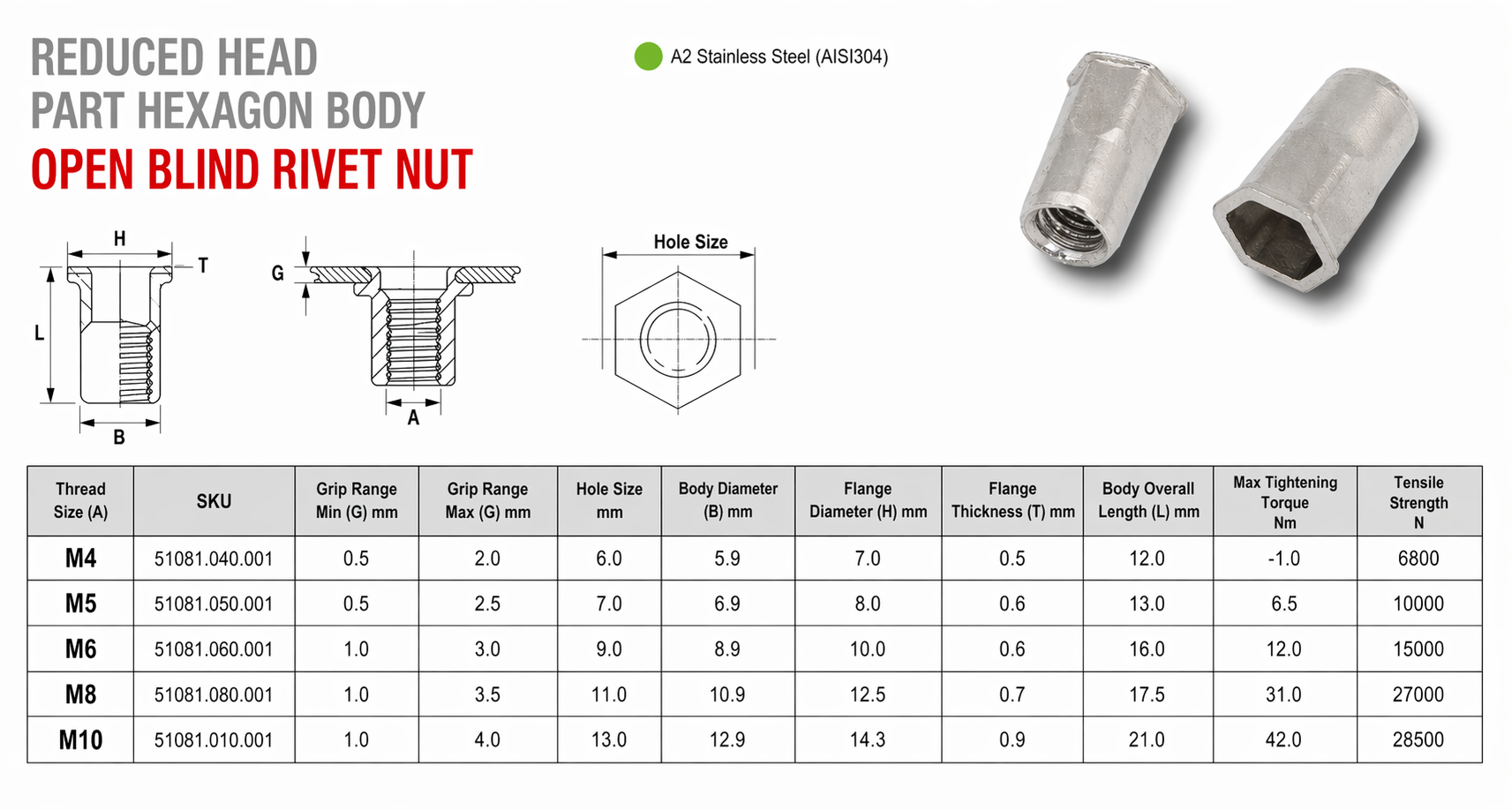

| Image | Product Code | Name | Info | Volume Discount | Quantity Add to Cart |
|---|---|---|---|---|---|
| 51080.040.001 | M4 x 12.0mm Reduced Head, Half Hexagon Open End Body Rivet Nuts, A4 Stainless Steel Grip range 0.5 – 2.0mm | ||||
|
Thread pitch: 0.7mm |
|||||
| 51080.050.001 | M5 x 13.0mm Reduced Head, Half Hexagon Open End Body Rivet Nuts, A4 Stainless Steel Grip range 0.5 – 2.5mm | ||||
|
Thread pitch: 0.8mm |
|||||
| 51080.060.001 | M6 x 16.0mm Reduced Head, Half Hexagon Open End Body Rivet Nuts, A4 Stainless Steel Grip range 1.0 – 3.0mm | ||||
|
Thread pitch: 1.0mm |
|||||
| 51080.080.001 | M8 x 17.5mm Reduced Head, Half Hexagon Open End Body Rivet Nuts, A4 Stainless Steel Grip range 1.0 – 3.5mm | ||||
|
Thread pitch: 1.25mm |
|||||
| 51080.010.001 | M10 x 21.0mm Reduced Head, Half Hexagon Open End Body Rivet Nuts, A4 Stainless Steel Grip range 1.0 – 4.0mm | ||||
|
Thread pitch: 1.5mm |
|||||
