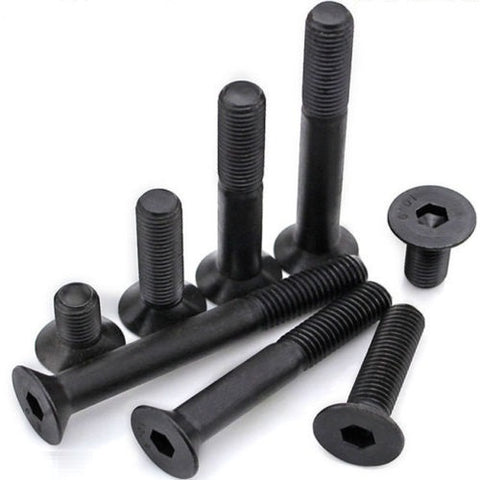

M6 Socket Screw, Countersunk, High Tensile Grade 10.9 Self Colour, DIN 7991

M6 Socket Screw/Bolt, Countersunk, High Tensile Grade 10.9 Self Colour, DIN 7991

  • £656

Excluding VAT

Return Policy:For Most items: 30 days Return Policy

We supply products all over the World, For international customers please send your enquriries to sales@boltworld.co.uk for Quotation.

Pitch (mm): 1.0

Allen key Size (mm): 4

High Tensile Self Colour Countersunk Socket Screws Grade 10.9. DIN 7991

ISO Metric Countersunk Socket Head Screws. High Tensile Grade 10.9 DIN 7991. Made to specifications ISO 10642

Click here for -> Socket countersunk screw dimensions

FURTHER INFORMATION

Diameter (d) Pitch dk k (max) s (nom) t a b
M2 0.40 3.80-3.66 1.24 1.30 0.65 max 90 L-K
M2.5 0.45 4.80-4.66 1.55 1.50 0.80 max 90 L-K
M3 0.50 6.72-5.54 1.86 2.00 1.10 min 90 L-K
M3.5 0.60 6.30 nom 2.20 2.00 1.30 max 90 L-K
M4 0.70 8.96-7.53 2.48 2.50 1.50 min 90 L-K
M5 0.80 11.20-9.43 3.10 3.00 1.90 min 90 L-K
M6 1.00 13.44-11.34 3.72 4.00 2.20 min 90 L-K
M8 1.25 17.92-15.24 4.96 5.00 3.00 min 90 L-K
M10 1.50 22.40-19.22 6.20 6.00 3.60 min 90 L-K
M12 1.75 26.88-23.12 7.44 8.00 4.30 min 90 L-K
M16 2.00 33.60-29.01 8.80 10.00 4.80 min 90 L-K
M20 2.50 40.32-36.05 10.16 12.00 5.60 min 90 Please enquire
M24 3.00 39.00-38.38 14.00 14.00 10.30 min 60 Please enquire
