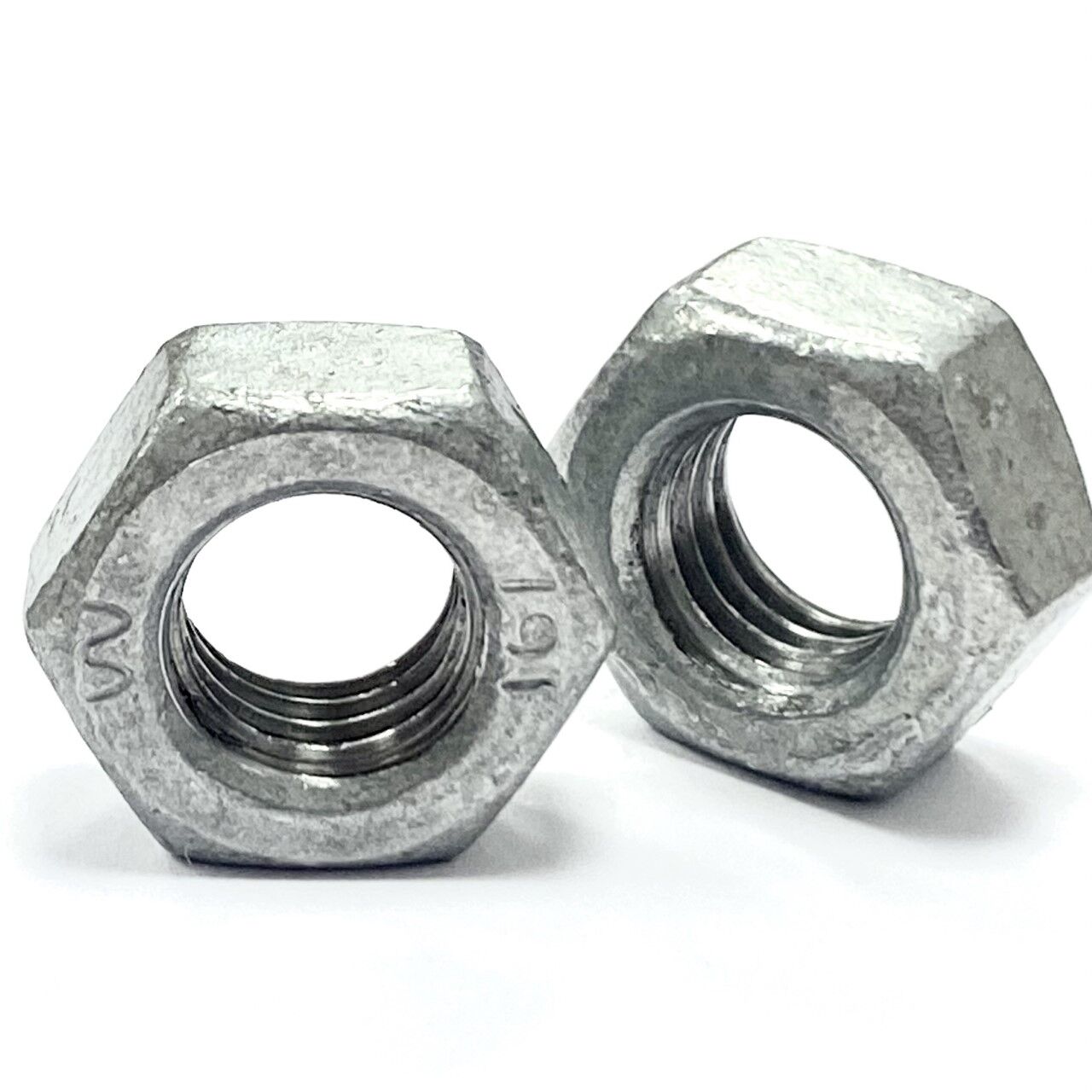

M6 Hexagon Full Nut,  Grade 8 Steel, Hot Dip Galvanised, DIN 934

M6 Hexagon Full Nut, Grade 8 Steel, Hot Dip Galvanised, DIN 934

  • £114

Excluding VAT

Return Policy:For Most items: 30 days Return Policy

The COVID-19 pandemic continues to cause challenges for all global logistics operations. At Bolt World we are operating as close to ‘normal’ as possible, but as you would expect delays and disruptions are inevitable under the circumstances.

Grade 8 Steel Hexagon Full Nut Grade 8 Galvanised DIN 934

Click For ->  Hexagon Nuts Dimensions

FURTHER INFORMATION

Diameter (d) Pitch s m
M1.0 0.25 2.50-2.40 0.80-0.55
M1.2 0.25 3.00-2.90 1.00-0.75
M1.4 0.30 3.00-2.90 1.20-0.95
M1.6 0.35 3.20-3.02 1.30-1.05
M1.7 0.35 3.50-3.38 1.40-1.15
M2 0.40 4.00-3.82 1.60-1.35
M2.3 0.40 4.50-4.32 1.80-1.55
M2.5 0.45 5.00-4.82 2.00-1.75
M2.6 0.45 5.00.4.82 2.00-1.75
M3 0.50 5.50-5.32 2.40-2.15
M3.5 0.60 6.00-5.82 2.80-2.55
M4 0.70 7.00-6.78 3.20-2.90
M5 0.80 8.00-7.78 4.00-3.70
M6 1.00 10.00-9.78 5.00-4.70
M7 1.00 11.00-10.73 5.50-5.20
M8 1.25 13.00-12.73 6.50-6.14
M10 1.50 17.00-16.73 8.00-7.64
M12 1.75 19.00-18.67 10.00-9.64
M14 2.00 22.00-21.67 11.00-10.30
M16 2.00 24.00-23.67 13.00-12.30
M18 2.50 27.00-26.16 15.00-14.30
M20 2.50 30.00-29.16 16.00-14.90
M22 2.50 32.00-31.00 18.00-16.90
M24 3.00 36.00-35.00 19.00-17.70
M27 3.00 41.00-40.00 22.00-20.70
M30 3.50 46.00-45.00 24.00-22.70
M33 3.50 50.00-49.00 26.00-24.70
M36 4.00 55.00-53.80 29.00-27.40
M39 4.00 60.00-58.80 31.00-29.40
M42 4.50 65.00-63.10 34.00-32.40
M45 4.50 70.00-68.10 36.00-34.40
M48 5.00 75.00-73.10 38.00-36.40
M52 5.00 80.00-78.10 42.00-40.40
M56 5.50 85.00-82.80 45.00-43.40
