M5 Solid Finishing Cup Washers A2 Stainless Steel, NFE 27-619
Excluding VAT
Return Policy:For Most items: 30 days Return Policy

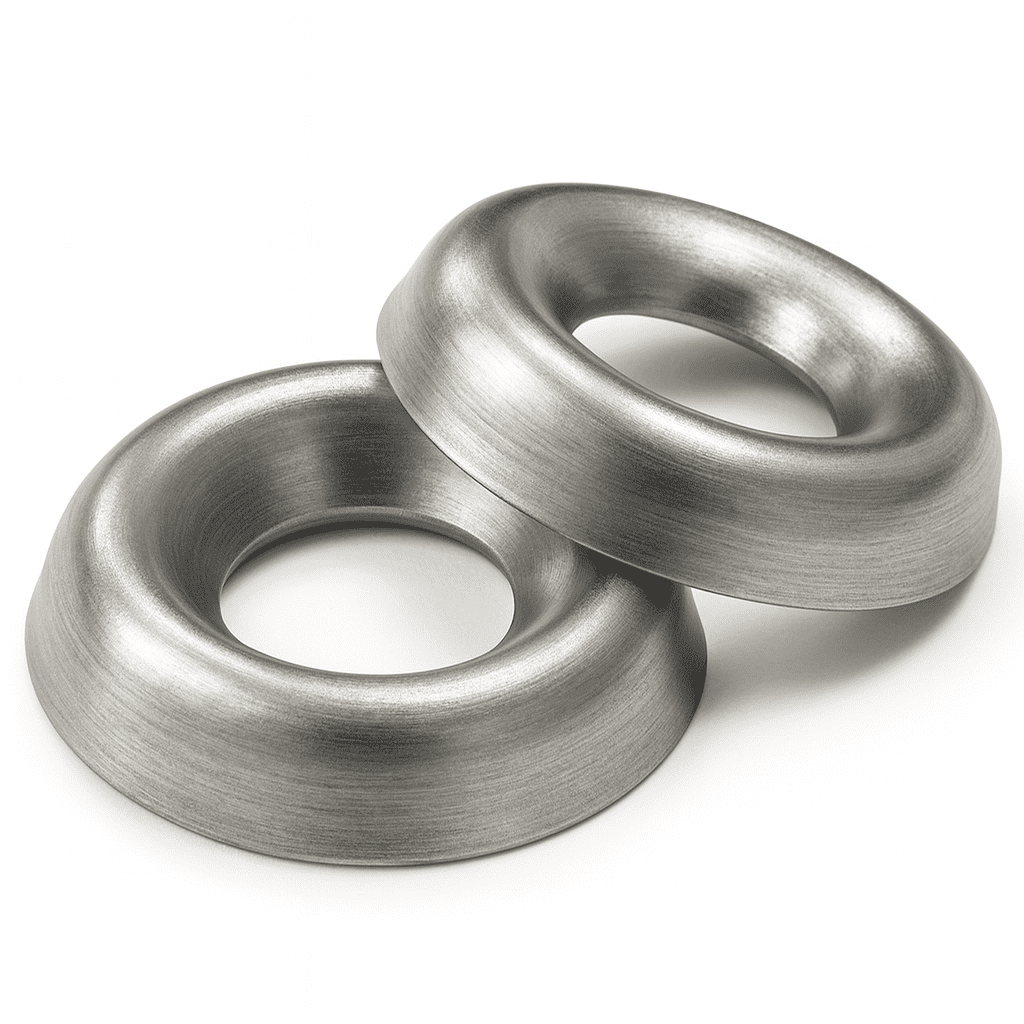

We supply products all over the World, For international customers please send your enquriries to sales@boltworld.co.uk for Quotation.These finishing washers are turned from a solid piece of stainless steel.
Far superior finish when compared to standard pressed cup washers.
These washers will give a top class finish to any project.
Being solid stainless steel they also offer strength and durability.
M3; hole diameter 3.5mm, outside diameter 9mm, height 2mm.
M4; hole diameter 4.3mm, outside diameter 11mm, height 2.5mm.
M5; hole diameter 5.3mm, outside diameter 14mm, height 3mm.
M6; hole diameter 6.4mm, outside diameter 16mm, height 3.5mm.
M8; hole diameter 8.5mm, outside diameter 22mm, height 4.5mm.
M10; hole diameter 11mm, outside diameter 28mm, height 5.5mm.
Manufactured from A2 stainless steel for additional corrosion resistance, the material of choice for external applications
Click For -> Cup Washers Dimensions (Solid Finishing)
FURTHER INFORMATION
| Diameter (d) | a | b | c | d |
|---|---|---|---|---|
| M3 | 3.80-3.50 | 9.30-9.00 | 6.80-6.50 | 2.20-1.80 |
| M4 | 4.80-4.50 | 11.30-11.00 | 8.30-8.00 | 2.60-2.40 |
| M5 | 5.80-5.50 | 14.70-14.00 | 10.30-10.00 | 3.20-2.80 |
| M6 | 7.30-7.00 | 16.30-16.00 | 12.30-12.00 | 3.70-3.30 |
| M8 | 9.30-9.00 | 22.30-22.00 | 16.30-16.00 | 4.70-4.30 |
| M10 | 11.30-11.00 | 28.30-28.00 | 20.30-20.00 | 5.70-5.30 |
| M12 | 14.30-14.00 | 32.30-32.00 | 24.30-24.00 | 6.70-6.30 |
