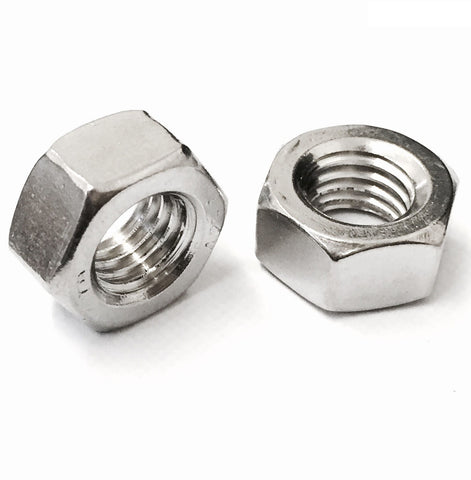

M5 Hexagon Full Nuts, LEFT hand thread, Stainless Steel A2 (304) DIN 934
Excluding VAT
Return Policy:For Most items: 30 days Return Policy
We supply products all over the World, For international customers please send your enquriries to sales@boltworld.co.uk for Quotation.Threads are standard metric coarse.
Threads are left hand and these nuts tighten anti clockwise, the opposite hand to standard nuts, they do not fit standard bolts.
Manufactured from A2 stainless steel for improved corrosion resistance
Click For -> Hexagon Nuts Dimensions
FURTHER INFORMATION
Diameter (d) | Pitch | s | m |
---|---|---|---|
M3 | 0.50 | 5.50-5.32 | 2.40-2.15 |
M4 | 0.70 | 7.00-6.78 | 3.20-2.90 |
M5 | 0.80 | 8.00-7.78 | 4.00-3.70 |
M6 | 1.00 | 10.00-9.78 | 5.00-4.70 |
M7 | 1.00 | 11.00-10.73 | 5.50-5.20 |
M8 | 1.25 | 13.00-12.73 | 6.50-6.14 |
M10 | 1.50 | 17.00-16.73 | 8.00-7.64 |
M12 | 1.75 | 19.00-18.67 | 10.00-9.64 |
M14 | 2.00 | 22.00-21.67 | 11.00-10.30 |
M16 | 2.00 | 24.00-23.67 | 13.00-12.30 |
M18 | 2.50 | 27.00-26.16 | 15.00-14.30 |
M20 | 2.50 | 30.00-29.16 | 16.00-14.90 |
M22 | 2.50 | 32.00-31.00 | 18.00-16.90 |
M24 | 3.00 | 36.00-35.00 | 19.00-17.70 |
M27 | 3.00 | 41.00-40.00 | 22.00-20.70 |
M30 | 3.50 | 46.00-45.00 | 24.00-22.70 |
